Products
Mixer Series

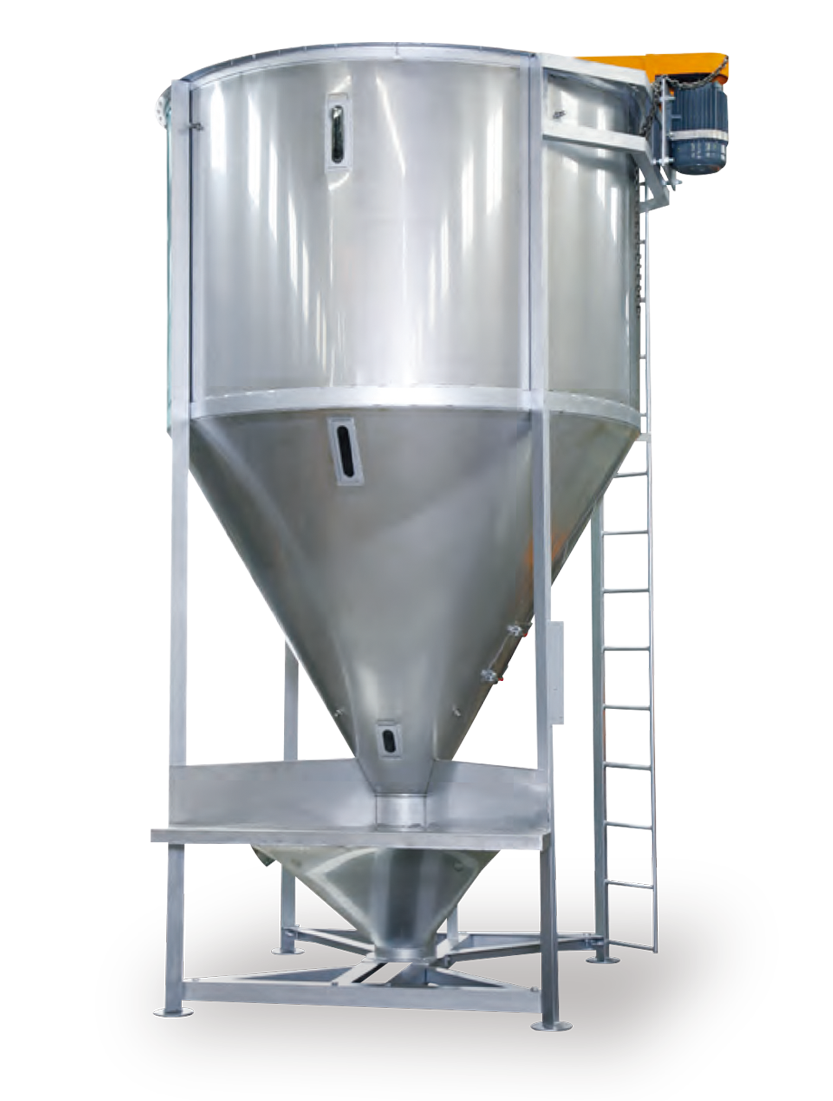

Vertical Type Mixer
Vertical Type Mixer
(Heater type is optional)
SH-VM301 - SH-VM307
FEATURES
Employs the spiral circulated mixing method to enable material to be mixed more evenly and quickly.
Suitable for mixing of crushed materials, new and recycled plastic pellets, and raw material.
SPECIFICATION
| CE Model | Unit | SH-VM301 | SH-VM302 | SH-VM303 | SH-VM304 | SH-VM305 | SH-VM306 | SH-VM307 |
|---|---|---|---|---|---|---|---|---|
| Motor | hp | 3 | 5 | 5 | 7.5 | 10 | 15 | 30 |
| Capacity | kg/hr | 500 kg | 1 ton | 1.5 ton | 2 ton | 3 ton | 5 ton | 10 ton |
| Weight | kg | 320 | 450 | 550 | 680 | 900 | 1450 | 3500 |
| Dimension | mm | 1200x1200x2440 | 1200x1200x3320 | 1480x1480x3250 | 1780 x 1850 x 3400 | 1780x1850x4080 | 2080x2080x5180 | 2800x2800x5660 |
˙Specifications are required, contact the manufacturer. Specifications shown in this catalog are subject to change without prior notice.
Related Products

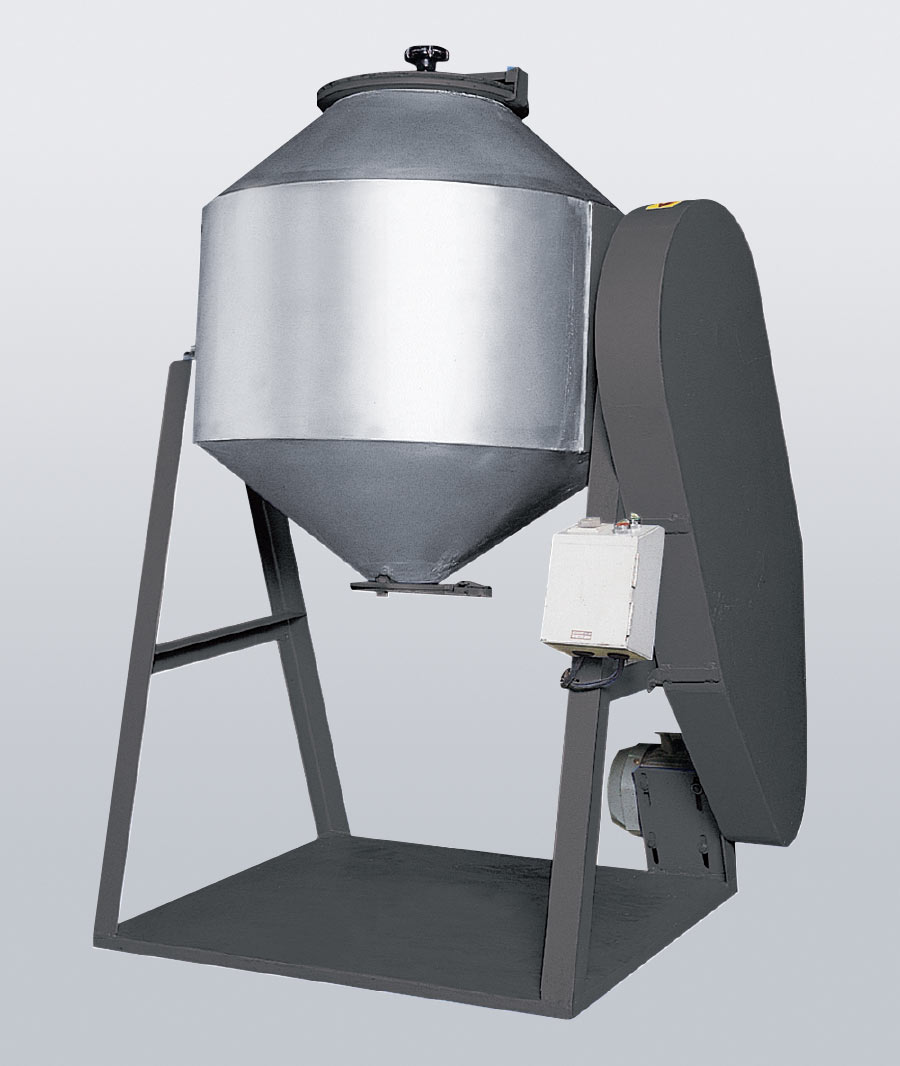

Economical Plastic Mixer
SH-001, SH-002

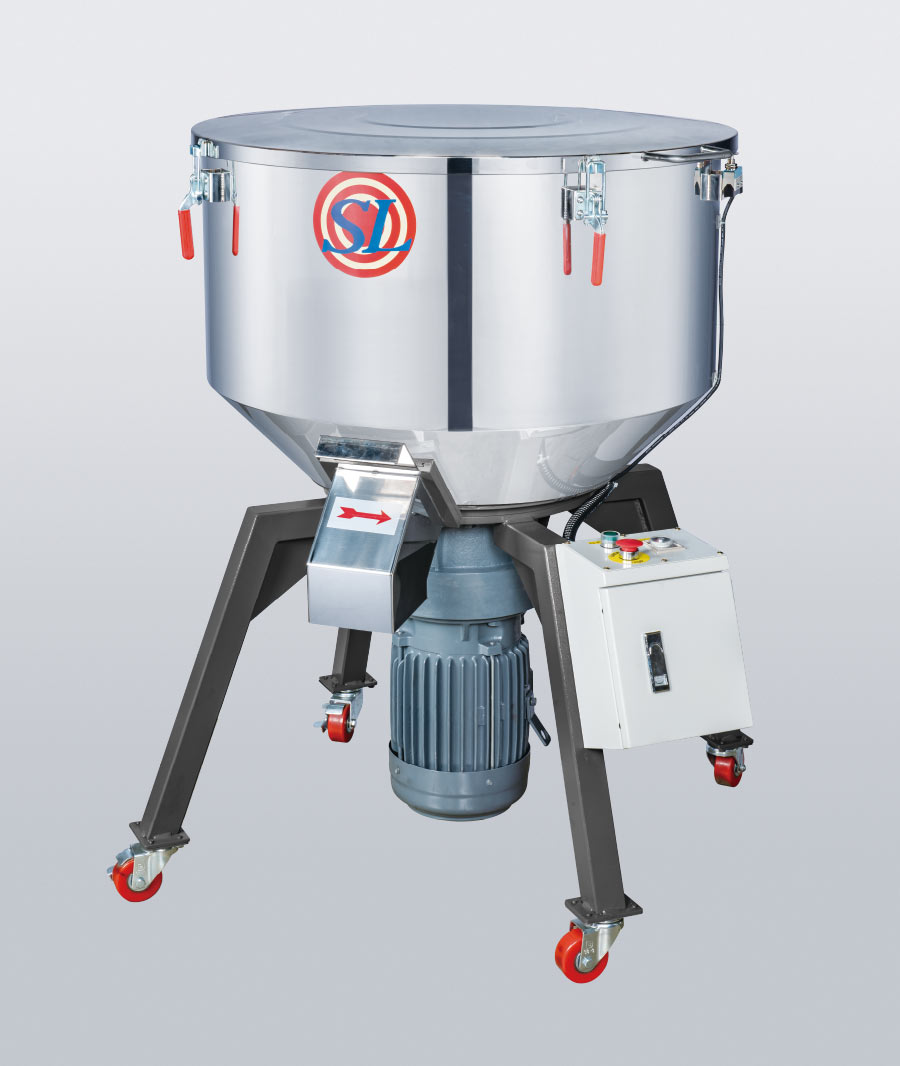

Universal Plastic Mixer
